YAMAHA MG12XU MIXING BOARD

Yamaha

$397.99 $499.00

Share:

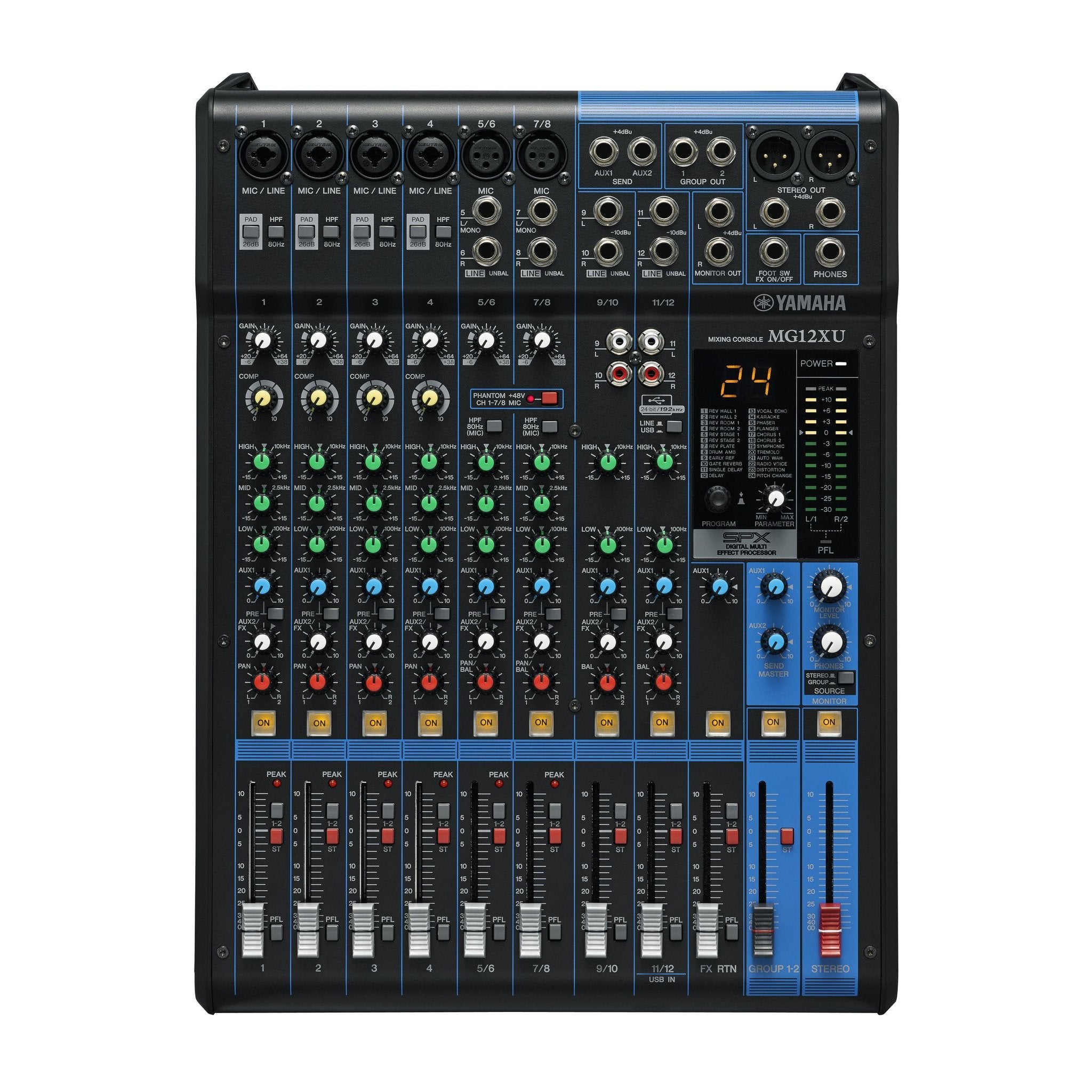

Yamaha MG12XU 12 Channel Mixing Console

Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)



12-Channel Mixing Console

Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)

2 GROUP Buses + 1 Stereo Bus

2 AUX (incl. FX)

“D-PRE” mic preamps with an inverted Darlington circuit

1-Knob compressors

High-grade effects: SPX with 24 programs

24-bit / 192kHz 2in / 2out USB Audio functions

Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter

Includes Cubase Al DAW software download version

PAD switch on mono inputs

+48V phantom power

XLR balanced outputs

Internal universal power supply for world-wide use

Optional Rack Mount Kit RK-MG12 Available

Metal chassis

Dimensions (W×H×D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")

Net Weight: 4.2 kg (9.3 lbs.)

Mixing capability              On-board processors     SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)

I/O         Phantom power               +48 V

Digital I/O            USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit

Input Channels Mono[MIC/LINE]             4

Mono/Stereo[MIC/LINE]             2

Stereo[LINE]      2

Output Channels              STEREO OUT       2

MONITOR OUT 1

PHONES               1

AUX SEND           2

GROUP OUT       2

Bus         Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)

Input Channel Function PAD       26 dB (Mono)

HPF        80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

COMP   1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH               Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking

EQ LOW                Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED             LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter       2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion             0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response      +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level           Equivalent input noise   -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise    -102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk              -78 dB

Power requirements      AC 100 – 240 V, 50 / 60 Hz

Power consumption       22 W

Dimensions        W            308 mm (12.1")

H             118 mm (4.6")

D             422 mm (16.6")

Net weight         4.2 kg (9.3 lbs.)

Accessories       Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5

Others  Operating Temperature: 0 to +40˚C
