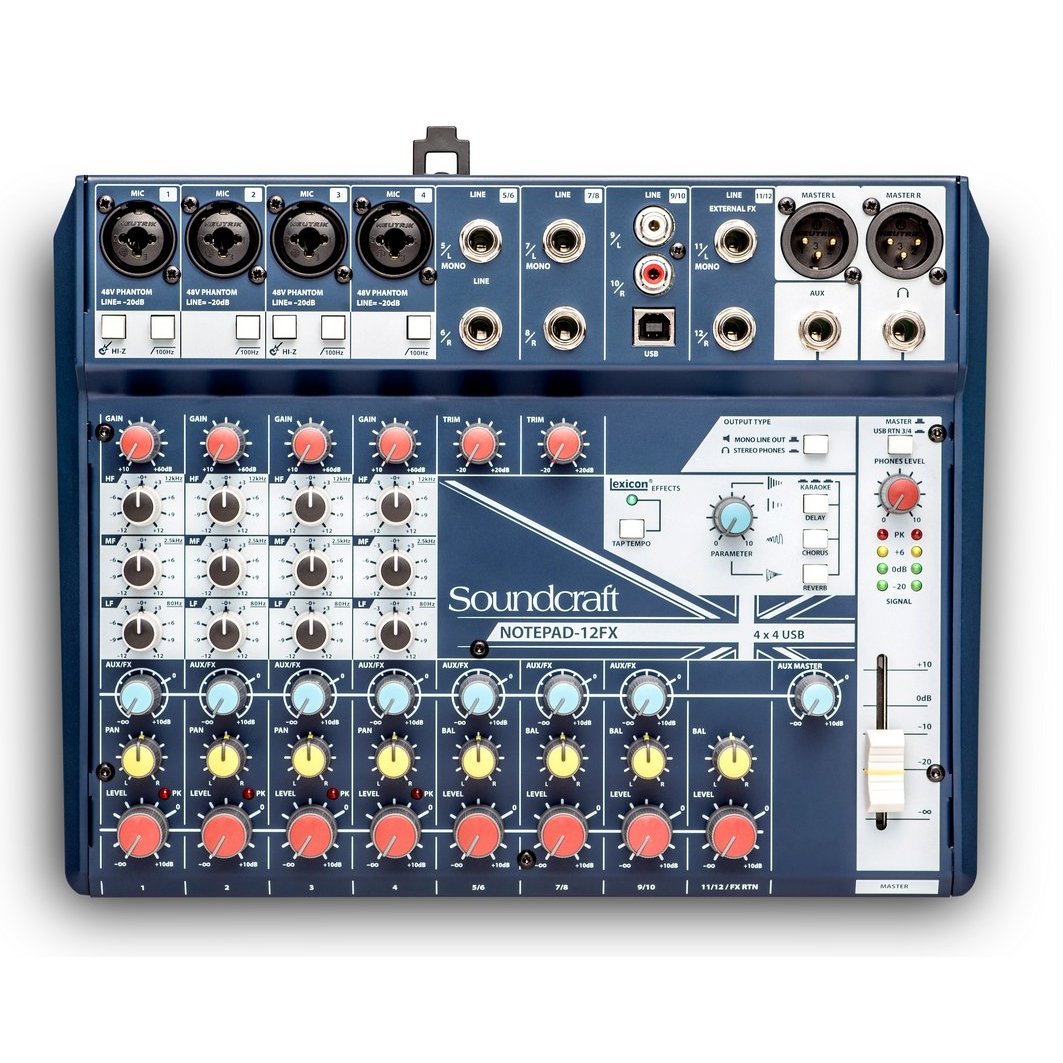

Soundcraft Notepad-12FX

$229.00

Next Product →

Excellent Pres, USB, and Lexicon Effects

Whether you need a personal mixer onstage or an easy way to record at home, the Soundcraft Notepad-12FX is a great choice. This compact 12-channel mixer includes four of Soundcraft's excellent preamps and additional inputs for keyboards and other stereo gear. There's a 4-channel USB audio interface onboard, which is great for live recording, music production, DJing, and any other application that requires multichannel audio streaming. There are also three digital effects from Lexicon onboard the Notepad-12FX, and they come complete with tap tempo and adjustable parameters.

Soundcraft Notepad-12FX Compact Mixer Features:

A compact 12-channel mixer that's great for mixing onstage or recording in your home studio
Includes 4 microphone preamplifiers with phantom power, 100Hz highpass filters, and 3-band EQs
Channels 1 and 3 include a hi-Z instrument-level input for running guitar or bass direct
Line-level inputs on 4 additional channels accommodate keyboards, playback devices, and consumer music gear
Onboard Lexicon digital effects include delay, chorus, and reverb
Tap tempo and a parameter adjustment knob let you dial in each effect to your material
USB provides 4-in/4-out connectivity for recording and audio streaming
Outputs include flexible monitoring options and balanced XLR main outs

Tech Specs

Type	Analog Mixer with USB interface
Channels	12 x 2
Inputs - Mic Preamps	4 x XLR-1/4" combo (mic/line, 2 x Hi-Z)
Phantom Power	Yes
Inputs - Line	4 x 1/4" (2 x stereo), 2 x RCA
Inputs - Other	2 x 1/4" (line/FX return)
Outputs - Main	2 x XLR (master)
Headphones	1 x 1/4"
EQ Bands	3-band EQ
Effects	Lexicon Delay, Chorus, Reverb
Aux Sends	1 x 1/4" (Aux/FX)
Faders	1 x master fader
USB	1 x Type B
Computer Connectivity	USB (4 x 2)
OS Requirements - Mac	OS X 10.10 or later
OS Requirements - PC	Windows 7 SP1 or later (with Soundcraft driver)
Power Source	External power supply
Height	3.5"
Width	13.4"
Depth	11.9"
Weight	5.1 lbs.
